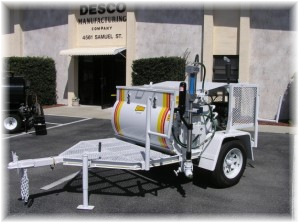

MODEL D300 HST SINGLE TANK

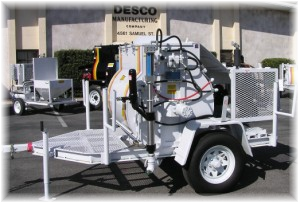

MODEL D300 HST SPLIT TANK
For the contractor that sprays one type of material at a time.
It has a 300-gallon all stainless steel mixing tank, 2” variable speed control piston pump, a sets of hoses, and texture gun. A 25 H.P. Engine and 26 C.F.M. compressor are standard. Direct drive hydraulic pump and an air over hydraulic control for turning pump on and off.
It has a 300-gallon all stainless steel mixing tank, 2” variable speed control piston pump, a sets of hoses, and texture gun. A 25 H.P. Engine and 26 C.F.M. compressor are standard. Direct drive hydraulic pump and an air over hydraulic control for turning pump on and off.
This is our most popular model for the drywall contractor.
It has a 300-gallon all stainless steel split mixing tank (200 x 100), two hydraulic material piston pumps 2” and 3”, both with variable speed control, two sets of hoses, and two texture guns. A 25 H.P. Engine and 26 C.F.M. compressor are standard. Direct drive hydraulic pump and an air over hydraulic control for turning pump on and off.
It has a 300-gallon all stainless steel split mixing tank (200 x 100), two hydraulic material piston pumps 2” and 3”, both with variable speed control, two sets of hoses, and two texture guns. A 25 H.P. Engine and 26 C.F.M. compressor are standard. Direct drive hydraulic pump and an air over hydraulic control for turning pump on and off.
| Capacity: | 300 gal. Stainless Steel Tank |
| Pumps: | 2" Hydraulic Piston Pump |
| Engine: | 25 H.P. Kohler |
| Compressor: | 26 C.F.M. |
| Gun: | Pole Gun & Binks 7D |
| Hose Set: | Each: 150' - 3/4", 3/8", 1/4" |
| Hose Racks: | Two |
| Approx. Weight: | 2400 lbs. |
| Size: | 89" W x 72" H x 138" L |
| Brakes: | Electric, One Set |
| Hitch: | 2" Ball and Adjustable Jack |
| Tires: | D Load Range 700 x 15 |
SPECIFICATIONS:
SPECIFICATIONS:
| Capacity | 300 Gallon Split Tank (200 gal & 100 gal) |
| Pumps: | 2" Hydraulic Piston Pump, 2" Stem & 3" Stem |
| Engine: | 25 H.P. Kohler |
| Compressor: | 26 C.F.M. |
| Gun: | Pole Gun & Binks 7D |
| Hose Set: | Two Each: 150' - 3/4", 3/8", 1/4" |
| Hose Racks: | Four |
| Approx. Weight: | 2400 lbs. |
| Size: | 89" W x 72" H x 138" L |
| Brakes: | Electric, One Set |
| Hitch: | 2" Ball and Adjustable Jack |
| Tires: | D Load Range 700 x 15 |
| ■ | 30 H.P. Engine |
| ■ | Tandem Axle Trailer |
| ■ | Hose Sets can be Customized |
| ■ | 40 C.F.M Compressor |
OPTIONS:
OPTIONS:
| ■ | 30 H.P. Engine |
| ■ | Tandem Axle Trailer |
| ■ | Hose Sets can be Customized |
| ■ | 40 C.F.M Compressor |
