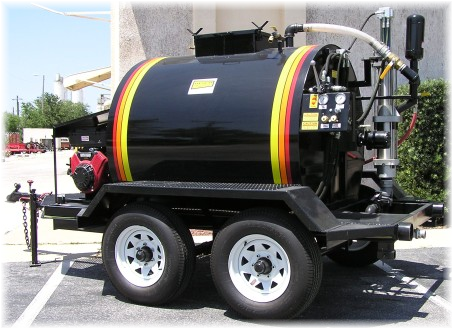

D600SC
Pump: 6" "Z" Series Pump
Engine: 18 H.P.
Hydraulic Pump: 10 GPM with Load Sense Control
Spray Wand: 6' Wand
Hose: 75' Material Hose
Approx. Weight: 3200 lbs.
Size: 6'9" W x 6'3" H x 14'6" L
Brakes Electric, One Set
Hitch: 2 5/16" Ball
Tires: 15" Wheels
Trailer: Tandem Axle
Pump: 6" "Z" Series Pump
Engine: 18 H.P.
Hydraulic Pump: 10 GPM with Load Sense Control
Spray Wand: 6' Wand
Hose: 75' Material Hose
Approx. Weight: 3200 lbs.
Size: 6'9" W x 6'3" H x 14'6" L
Brakes Electric, One Set
Hitch: 2 5/16" Ball
Tires: 15" Wheels
Trailer: Tandem Axle
D700SC UP TO D1600SC
These skid mounted Models are available with 700, 1100 and 1600 gallon round material tanks. All tanks have the forward and reversing, full sweeping rubber wipers. The 700 gallon has an 18 HP engine and the 1100 and 1600 have 25 HP engines.
These skid mounted Models are available with 700, 1100 and 1600 gallon round material tanks. All tanks have the forward and reversing, full sweeping rubber wipers. The 700 gallon has an 18 HP engine and the 1100 and 1600 have 25 HP engines.
| ■ | 8’ Spray Bar |
| ■ | Extra Hose |
| ■ | Tool Boxes |
| ■ | Custom Beds |
TOLL FREE:888-925-7029
This Seal Coating machine has rubber wipers on agitator blades with forward and reversing agitation.

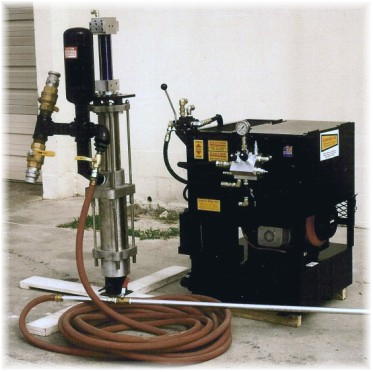

The power pack system is mounted on a skid that can easily be bolted to a truck and is available in a number of layout configurations. It is powered by a gasoline fueled, air-cooled 18 H.P. engine rated at 3600 R.P.M. The system includes a 1 gallon surge chamber on material pump discharge, a 2” NPT basket strainer on material pump inlet, and a directional and flow control circuit for driving a hydraulic agitator motor.
DP18 SEAL COATER POWER PACK
| ■ | 8" Pump |
| ■ | Operator Seat |
| ■ | Ramp on Back |
| ■ | 8' Mechanical Spray Bar |
| ■ | Extra Hose |
| ■ | Large Deck |
| ■ | Water System |
Pump: 6"Stainless Steel Pump
Hydraulic Pump: 10 GPM with Load Sense Control
Spray Wand: 6' Wand
Hose: 75' Material Hose
Suction Hose: 15' of 2" Hose
Gas Tank: 5.5 Gallon
Agitator Shaft: 2" to 2 1/2"
Hydraulic Pump: 10 GPM with Load Sense Control
Spray Wand: 6' Wand
Hose: 75' Material Hose
Suction Hose: 15' of 2" Hose
Gas Tank: 5.5 Gallon
Agitator Shaft: 2" to 2 1/2"
OPTIONS:
| ■ | Step on Back of Truck |
| ■ | Divider in Material Tank |
| ■ | Water Tank |
Pump: 6" "Z" Series
Spray Wand: 6' Wand
Hose: 75' - 3/4"
Hydraulic System: Variable Volume Load Sense Hydraulic
System with 20 Gallon Reservoir
Delivering up to 14 GPM at 1500 PSI
Controls: Infinitely Adjustable Flow and Pressure
Controls on Material Pump Circuit
Hydraulic Pump: 10 GPM with Load Sense Control
Spray Wand: 6' Wand
Hose: 75' - 3/4"
Hydraulic System: Variable Volume Load Sense Hydraulic
System with 20 Gallon Reservoir
Delivering up to 14 GPM at 1500 PSI
Controls: Infinitely Adjustable Flow and Pressure
Controls on Material Pump Circuit
Hydraulic Pump: 10 GPM with Load Sense Control
OPTIONS:
OPTIONS:

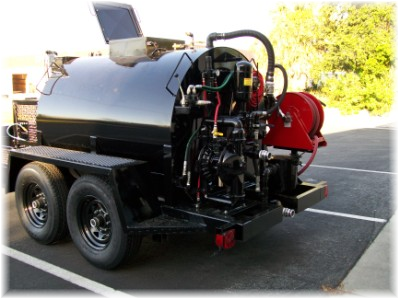

DIAPHRAGM 700 GALLON
Some seal coat companies prefer the diaphragm construction so we designed this machine. If you are used to spraying with a hydraulic pump machine we're sure you'll achieve the same smooth spray with this machine.
Pump: Rupp
Engine: 14 HP Kohler
Hydraulic Pump: 6 GPM with Forward & Reverse Control
Spray Wand: 6'
Compressor: Jenny
Hose: 75' Material Hose
Suction Hose: 10' of 2" Hose
Agitator Shaft: 2"
Hose Reel: Reel Craft
Strainer Basket: 3 Gallon
Engine: 14 HP Kohler
Hydraulic Pump: 6 GPM with Forward & Reverse Control
Spray Wand: 6'
Compressor: Jenny
Hose: 75' Material Hose
Suction Hose: 10' of 2" Hose
Agitator Shaft: 2"
Hose Reel: Reel Craft
Strainer Basket: 3 Gallon
AlsoAvailable with an 8" Pump
