OPTIONS:
| ■ | Compressor: 26 C.F.M. |
| ■ | Engine: 68 HP Kubota |
| ■ | Mounting: Skid Mount Available |
| ■ | Gun: 1 1/2" Spray Gun |
| ■ | Hose: 150' of 1 1/2" |
| ■ | Pipeline: 3" to 2 1/2" to 2" |
| ■ | Remote Control: Omni or Remtron |
|
|
|
.jpg "D318 007 (293 x 390)")
.jpg "D318 004 (382 x 287)")
.jpg "D318 002 (382 x 287)")

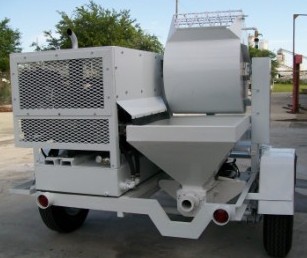

D518T
The DESCO D518T Hydraulic Concrete Placement Pump distributes concrete, shotcrete, and plaster at a rate of 40 yards per hour. This pump comes equipped with a hose caddy deck and a toolbox. This is truly one of the world’s finest and most reliable hydraulic pumps.
The DESCO D518T Hydraulic Concrete Placement Pump distributes concrete, shotcrete, and plaster at a rate of 40 yards per hour. This pump comes equipped with a hose caddy deck and a toolbox. This is truly one of the world’s finest and most reliable hydraulic pumps.
| Capacity: | 40 Yards per Hour |
| Pump: | 5" Material Cylinder, 18" Hydraulic Piston Stroke |
| Engine: | Cummings Diesel 85.5 Turbo |
| Approx. Weight: | 3100 lbs. |
| Size: | 5' 10" W x 7' 2" H x 14' L |
| Hitch: | 2" Ball Hitch |
| Tires: | 14" Radial |
| Hose: | 200' of 2" Pump Hose |
SPECIFICATIONS:
|
Theoretical Capacity Maximum Concrete Pressure "S" Tube and Outlet Hopper Pumping Cylinder Oil Tank Fuel Tank Standard Engine Hydraulic Pump Approx. Weight Dimensions Brakes Mounting Hitch Tires |
10 Yards per Hour 1500 PSI 3" 9 Cubic Foot 3" Material Cylinder w/18" Hyd. Stroke 30 Gallon 11 Gallon 34 HP Gas or Diesel 1.5/.75 Cubic Foot Tandem Pump 4000 LBS 90" W x 84" H x 157" L Electric, One Set 6,000 LB Drop Axle 2 5/16" Ball and Adj. Jack, 5,000 LB. 750 x 16" 8 Bolt |
D318 CHEYENNE
